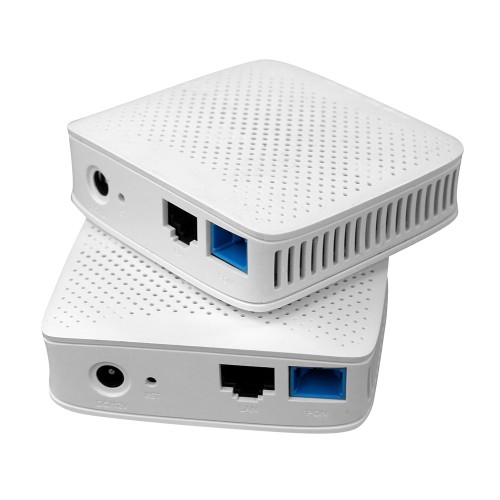

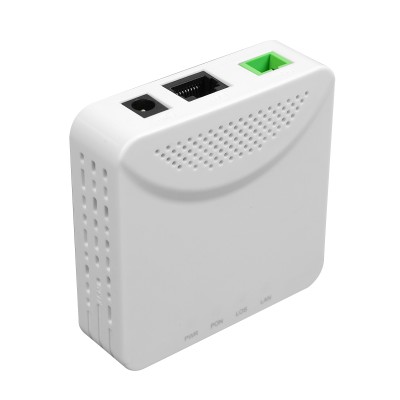

GPon ONT Modem Router 1GE X11 is one of the latest G/EPON passive optical network communication terminal series, and the product provides 1 10/100/1000M RJ45 interface, and 1 optical fiber access, suitable for home and small business users,after that, it can also well meet the FTTH high-speed data transmission applications.
| LED | PWR+PON/LOS+LAN |
| Port | 1*RJ45(GE) |
| 1*Reset | |
| 1*SC/APC (or SC/UPC) | |
| 1*DC | |
| Size | 79.5*74.7*22mm(L*W*H) |
| Power Consumption | ≤8W |
| Ethernet Port | Ethernet port-based VLAN tags and tag removal |
| VLAN transparent and aggregation | |
| MAC address learning | |
| 10/100/1000Mbps Auto negotiation |
| G/EPON | ITU-T G.984.1-4 |
| IEEE 802.3ah | |
| 15 TCONTs /256GEM ports | |
| 8 Egress queues per TCONT at least | |
| VLAN or VLAN plus priority gem mapping mode | |
| SN/LOID/SN+ Password authentication | |
| Performance monitoring: eth/Gem port | |
| Dying gasp | |
| Layer 2 Features | MAC learning (SVL)/aging |
| Support max frame length to1518 bytes | |
| VLAN tagging for untagged packets | |
| Support VLAN 1-4094 | |
| VLAN transparent/translation | |
| Multicast | IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376) |
| IGMP snooping | |
| Management | OMCI/Web UI |
| SSH management with CLI commands | |
| Dual-system software backup and rollback |
| Operate Temperature | 0℃~45℃ |
| Storage Temperature | -20℃~70℃ |
| Operating Humidity | 5%～95% non-condensing |
| Power Supply | 12V/0.5A |
